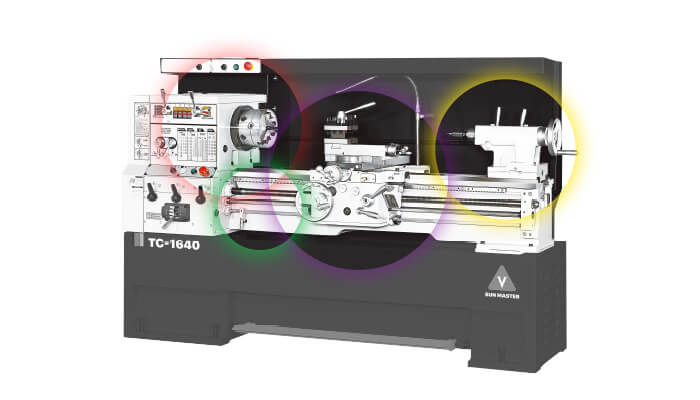

Advanced Capabilities and Features of the TC Series Gear-Head Lathe #
The TC Series Gear-Head Lathe is designed to deliver reliable performance and precision for a wide range of turning applications. This series is engineered with robust construction, advanced features, and a focus on operator convenience and safety.
Model Variants and Core Specifications #
| Model | TC-1640 | TC-1660 | TC-1840 | TC-1860 |
|---|---|---|---|---|
| Height of Centers | 205 mm (8.07") | 231 mm (9.09") | 205 mm (8.07") | 231 mm (9.09") |
| Swing Over Bed | Ø410 mm (16.14") | Ø462 mm (18.18") | Ø410 mm (16.14") | Ø462 mm (18.18") |
| Swing in Gap | Ø620 mm (24.4") | Ø652 mm (25.66") | Ø620 mm (24.4") | Ø652 mm (25.66") |
| Swing Over Cross Slide | Ø255 mm (10.04") | Ø305 mm (12") | Ø255 mm (10.04") | Ø305 mm (12") |
| Distance Between Centers | 1000 mm (40") | 1500 mm (60") | 1000 mm (40") | 1500 mm (60") |
| Width of Bed | 305 mm (12") | 305 mm (12") | 305 mm (12") | 305 mm (12") |
| Gap Width in Front Faceplate | 120 mm (4.72") | 120 mm (4.72") | 120 mm (4.72") | 120 mm (4.72") |
Headstock and Main Spindle #
- Spindle nose: D1-6 (standard) / A2-6 (optional)
- Spindle center sleeve: Ø70 mm (2.76"), Taper 1/19.18 MT x NO.4
- Spindle bore: Ø65 mm (2.55")
- Spindle speed: 12 steps, range 36 ~ 1800 RPM
- A: 36, 50, 70, 105
- B: 130, 180, 250, 380
- C: 620, 900, 1200, 1800
Carriage #
- Cross slide travel: 250 mm (9.84") or 260 mm (10.23") depending on model
- Top slide travel: 155 mm (6.1")
Threads and Feeds #
- Whitworth threads: 45 kinds, 2 ~ 72 T.P.I.
- Metric threads: 39 kinds, 0.2 ~ 14 mm
- D.P. threads: 21 kinds, 8 ~ 44 D.P.
- M.P. threads: 18 kinds, 0.3 ~ 3.5 M.P.
- Longitudinal feeds: 0.04 ~ 1.0 mm (0.0015" ~ 0.04")
- Cross feeds: 0.02 ~ 0.5 mm (0.00075" ~ 0.02")
Tailstock #
- Quill diameter: Ø59 mm (2.322")
- Quill travel: 127 mm (5")
- Taper of center: MT No. 4
Motor and Power #
- Main spindle: 5 HP (3.75 kW)
- Coolant pump: 1/8 HP (0.09375 kW)
Measurements and Weight #
- Net weight: 1600–1800 kg depending on model
- Gross weight: 1800–2050 kg
- Packing size (L x W x H):
- Length: 2400 mm or 2900 mm
- Width: 1120 mm (44.1")
- Height: 1900 mm (74.8")
Specifications are subject to change without notice.
Standard Accessories #
- Backplate for 9" chuck
- Dead center MT.4
- Dead center MT.4 with carbide tip
- Spindle center sleeve MT.6
- Level pads (6 pcs)
- Tool set & box
- Operation manual & parts list
- Full length splash guard
- Halogen lamp
Optional Accessories #
Key Engineering Features #
- All castings are stabilized and stress relieved for durability.
- Bed ways are hardened and ground to a minimum of HRC 48–55.
- Turcite B coating is applied between the bed and carriage for smooth movement.
- Operates with extremely low noise levels.
- Equipped with a foot brake pedal for safety.
- Built-in coolant pump and fittings are included.
- The wider bed way design enhances vibration absorption.
