Robust Engineering and Versatile Performance: CH Series Gear Head Manual Engine Lathes #
The CH Series Gear Head Manual Engine Lathe Machine is designed to deliver reliable performance and adaptability for a wide range of turning applications. This series is available in multiple models to suit various operational needs:
- CH-2260 / 2290 / 22120 / 22160 / 22200
- CH-2660 / 2690 / 26120 / 26160 / 26200
- CH-3060 / 3090 / 30120 / 30160 / 30200
Technical Specifications #
| Model | CH-2260 / 2290 / 22120 / 22160 / 22200 | CH-2660 / 2690 / 26120 / 26160 / 26200 | CH-3060 / 3090 / 30120 / 30160 / 30200 |
|---|---|---|---|
| Swing over bed | 560 mm (22") | 660 mm (26") | 760 mm (30") |
| Swing in gap | Ø797 mm (31.37") | Ø892 mm (35.11") | Ø990 mm (38.97") |
| Swing over cross slide | Ø340 mm (13.38") | Ø445 mm (17.51") | Ø548 mm (21.57") |
| Gap width in front of faceplate | 270 mm (10.63") | 270 mm (10.63") | 270 mm (10.63") |
| Distance between centers | 1500 mm (60"), 2300 mm (90"), 3000 mm (120"), 4000 mm (160"), 5000 mm (200") | 1500 mm (60"), 2300 mm (90"), 3000 mm (120"), 4000 mm (160"), 5000 mm (200") | 1500 mm (60"), 2300 mm (90"), 3000 mm (120"), 4000 mm (160"), 5000 mm (200") |
| Width of bed | 400 mm (15.75") | 400 mm (15.75") | 400 mm (15.75") |
| Top slide travel | 228 mm (8.98") | 228 mm (8.98") | 228 mm (8.98") |
| Cross slide travel | 400 mm (15.75") | 400 mm (15.75") | 400 mm (15.75") |
| Spindle nose type | D1-11 | D1-11 | D1-11 |
| Spindle center sleeve | MT#7 x MT#5 | MT#7 x MT#5 | MT#7 x MT#5 |
| Spindle bore | Φ104 mm (4.094") | Φ104 mm (4.094") | Φ104 mm (4.094") |
| Spindle speed | 12 steps | 12 steps | 12 steps |
| Speed range (60 Hz) | 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM | 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM | 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM |
| Whitworth threads kinds / range | 44 kinds / 2 ~ 72 T.P.I. | 44 kinds / 2 ~ 72 T.P.I. | 44 kinds / 2 ~ 72 T.P.I. |
| Metric threads kinds / range | 39 kinds / 0.2 ~ 14 mm | 39 kinds / 0.2 ~ 14 mm | 39 kinds / 0.2 ~ 14 mm |
| Diameter of leadscrew | Φ45 mm (1.77") | Φ45 mm (1.77") | Φ45 mm (1.77") |
| Pitch of leadscrew | 4 TPI, P = 6 mm | 4 TPI, P = 6 mm | 4 TPI, P = 6 mm |
| Longitudinal feeds | Metric: 0.035 ~ 0.98 mm/rev; Inch: 0.0012 ~ 0.039/rev | Metric: 0.035 ~ 0.98 mm/rev; Inch: 0.0012 ~ 0.039/rev | Metric: 0.035 ~ 0.98 mm/rev; Inch: 0.0012 ~ 0.039/rev |
| Cross feeds | Metric: 0.011 ~ 0.296 mm/rev; Inch: 0.0004 ~ 0.0117/rev | Metric: 0.011 ~ 0.296 mm/rev; Inch: 0.0004 ~ 0.0117/rev | Metric: 0.011 ~ 0.296 mm/rev; Inch: 0.0004 ~ 0.0117/rev |
| Quill diameter | Φ80 mm (3.15") | Φ80 mm (3.15") | Φ80 mm (3.15") |
| Quill travel | 250 mm (10") | 250 mm (10") | 250 mm (10") |
| Taper of center | MT #5 | MT #5 | MT #5 |
| Main spindle motor | Std.: 15 HP (11.25 kW), Opt.: 20 HP (15 kW) | Std.: 15 HP (11.25 kW), Opt.: 20 HP (15 kW) | Std.: 15 HP (11.25 kW), Opt.: 20 HP (15 kW) |
| Coolant pump | 1/6 HP | 1/6 HP | 1/6 HP |
| Net weight (KG) | 60": 2860, 90": 3310, 120": 3545, 160": 4150, 200": 4600 | 60": 2950, 90": 3400, 120": 3635, 160": 4240, 200": 4690 | 60": 3040, 90": 3490, 120": 3725, 160": 4330, 200": 4780 |
| Packing size length | 3255 mm (128.14"), 4055 mm (159.64"), 4755 mm (187.2"), 5755 mm (226.57"), 6755 mm (265.94") | 3255 mm (128.14"), 4055 mm (159.64"), 4755 mm (187.2"), 5755 mm (226.57"), 6755 mm (265.94") | 3255 mm (128.14"), 4055 mm (159.64"), 4755 mm (187.2"), 5755 mm (226.57"), 6755 mm (265.94") |
| Width x Height | Width: 1150 mm (45.27"); Height: 1700 mm (66.9") | Width: 1150 mm (45.27"); Height: 1700 mm (66.9") | Width: 1150 mm (45.27"); Height: 1700 mm (66.9") |
Specifications are subject to change without notice.
Standard Accessories #
- Backplate for 12" chuck
- Dead center MT.5
- Dead center MT.5 with carbide tip
- Spindle center sleeve MT#7, MT#5
- Level pads (6 ~ 10 pcs)
- Tool set & box
- Operation manual & parts list
- Full length splash guard
- Halogen lamp
Optional Accessories #
Key Features #
- All castings are stabilized and stress relieved for durability.
- Bed ways are hardened and ground to a minimum of HRC48-55.
- Operates with extremely low noise levels.
- Equipped with a foot brake pedal for safety.
- Wide bed ways absorb vibration for stable operation.
- Y-Δ type spindle motor ensures smooth start and operation.
- Adjustable oil distributor for lubricating bedways and cross slide.
- Automatic and manual forced lubrication pump for bedways and cross slide.
- Dual braking system: mechanical and electrical, for rapid spindle stop.
- 3V sliding ways enhance displacement stability and processing smoothness.

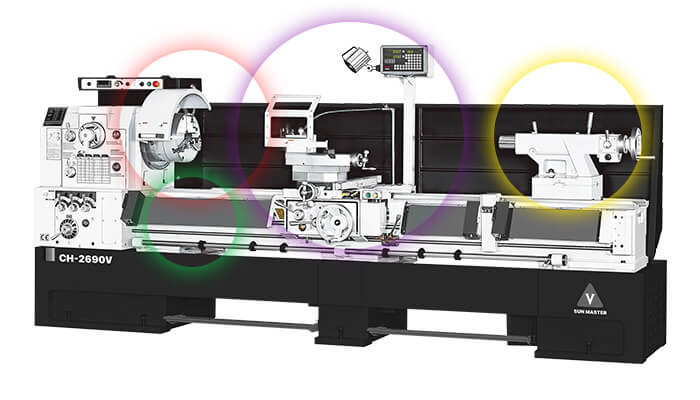

Engineering Highlights #
Rugged Headstock #
- Forced lubrication to all running points.
- Head housing offers excellent vibration dampening and deformation resistance.
- Robust construction for extra rigidity and heavy-duty cutting.
- All gears and shafts are hardened and precision ground.
Universal Gearbox #
- Wide range of inch and metric threads without gear changes for convenience.
- Hardened gears with oil bath lubrication.
Heavy Duty Spindle #
- Camlock type spindle.
- Precision machined from forged alloy steel, hardened, ground, and dynamically balanced.
- Three-point support with high precision taper roller and ball bearings eliminates chatter during heavy cutting.
Apron #
- Manual and automatic lubrication system for sliding ways and bedways.
- Choice of right or left hand wheel.
- Overload protection device to prevent machine damage.
Rugged Tailstock #
- Quill graduated in inch and metric scales.
- Tang slot for positive tool drive.
- Two-step tailstock for smooth operation.
